Arduino – SD Card

This afternoon’s project was to connect an SD card to an Arduino to be able to record log information on the card for later retrieval using a PC.
For the project I used an SD/MMC Mini Board from Futurelec. Futurlec has a number of interesting products which are reasonably priced. The order took a little over a month given the fact that they didn’t have the board in stock and due to international shipping. During the wait the folks at Futurelec were quite responsive to my queries via email.
I was using an atmega328p chip powered at 3.3v with an 8mhz oscillator. This made things easier as I didn’t need to worry about voltage dividers between the microprocessor and the SD card. The hardware I used was rounded out with a 512mb Kodak SD Card I had laying around.

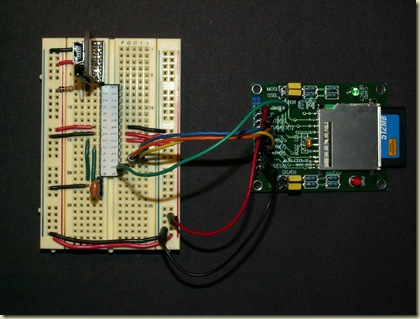

SDCard
For software I used Bill Greiman’s fat16lib which performed flawlessly. I tested my project with fat16info, fat16write and fat16tail with version 17 of the Arduino IDE.
The only problem I had was that I missed that the SD/MMC Mini Board has two pins labeled CD. One is in fact pin 1 from the SD card while the other is Card Detect. Pin 1 from the SD card is clearly labeled as such but I missed it the first time and connected to the other CD.
The pinouts that I used are below for reference:
Arduino Pinsatmega328p PinsDescriptionSD Card PinsSD Description
1016ssel1cd/dat3
1117misi2cmd
1319sck5clk
1218miso7dat0
vcc 3.3vvccvcc 3.3v4vcc 3.3v
gndgndgnd3+6gnd
I want to thank Bill Greiman for the great library he has put together. Also, my thanks to all of you who have posted information about your projects that helped me along.
